Proxxon - Micro-Press MP 120
Proxxon - Micro-Press MP 120
Regular price
$183.99 USD
Regular price
$229.99 USD
Sale price
$183.99 USD
Unit price
per

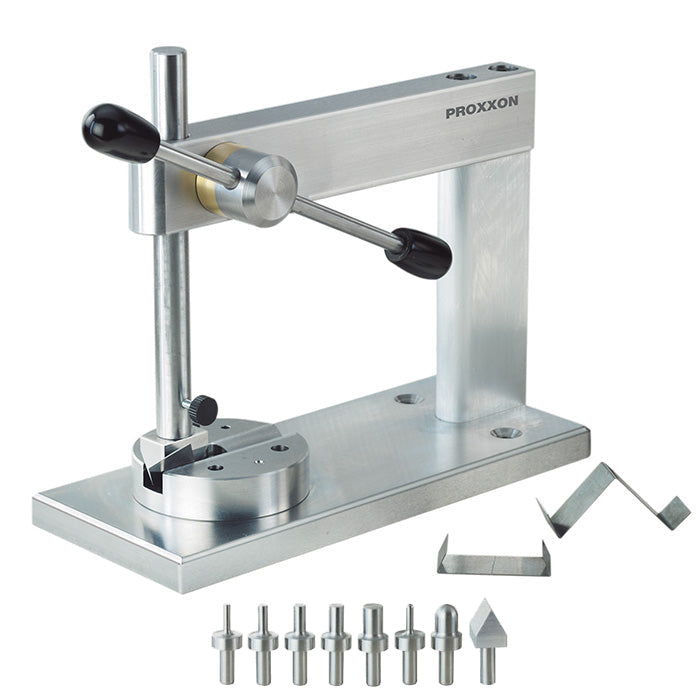

With 5 cylindrical punching tools Ø 7/64" - 5/32" - 13/64" - 15/64" - 5/16" (3 - 4 - 5 - 6 and 8mm), surface hardened, one each semi-spherical profile Ø 7/64" (3mm) and Ø 23/64" (9mm) and a 90° square prism for bending sheet metal. Punching tools are inserted into the toothed rack and fixed with a knurled screw. The counterpart is an easily adjustable, hardened revolving plate with all required holes and bottom dies for the above-specified punching tools. Force of pressure approx. 1,000N, 220 lbs (100kg). Maximum stroke of toothed rack with inserted punch 29/16" (65mm), above revolving plate 2" (50mm). Solid steel arm with 4 3/4" (120mm) throat. Ground base plate of steel, 2 3/16 " x 7 1/2" (80 x 190mm) with an 5/16"- (8mm) centre and two fastening bores. Weight approx. 6.2 lbs (2,800g).
