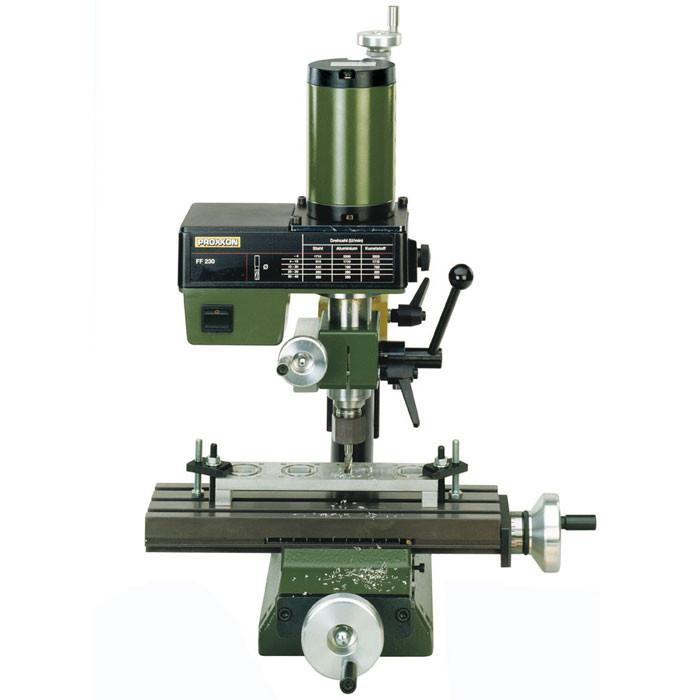

Proxxon - Micro mill FF 230

The MICRO Mill FF 230 is a small, accurate milling system used to mill, drill and countersink steel, cast iron, aluminum, brass and plastic. The headstock swivels through 360°, indicated on a scale. Height is adjustable. One revolution equals 1/32" (1mm) travel, 1 division equals .002" (0,05mm). The quill and headstock may be locked in position, which is essential when milling. The powerful permanent magnet motor drives via a poly-v-belt, yielding high torques, especially at lower speeds. The machine comes with three collets of 15/64", 5/16" and 25/64" (6, 8 and 10mm). The solid table has a size of 10 5/8" x 3 5/32" (270 x 80mm) and is T-slotted to 15/32" x 15/64" x 13/64" (the MICROMOT norm of 12 x 6 x 5mm). Technical data: Speeds 280 - 550 - 870 - 1,200 - 1,500 - 2,200rpm; Table Size 10 5/8" x 3 5/32" (270 x 80mm), Column Size Ø 1 3/8" x 15 3/4" long (35 x 400mm); X-Y Travel 6 11/16" x 2 9/16" (170mm x 65mm); Overall Height 20" (500mm); Volts 110 - 120V AC, 60Hz; Weight 41 lb. (17kg) Important: For best results when milling, it is recommended to lock the headstock. This is easily done via the FF 230's lock levers.
