Proxxon - Micro Band Saw MBS/E
Proxxon - Micro Band Saw MBS/E

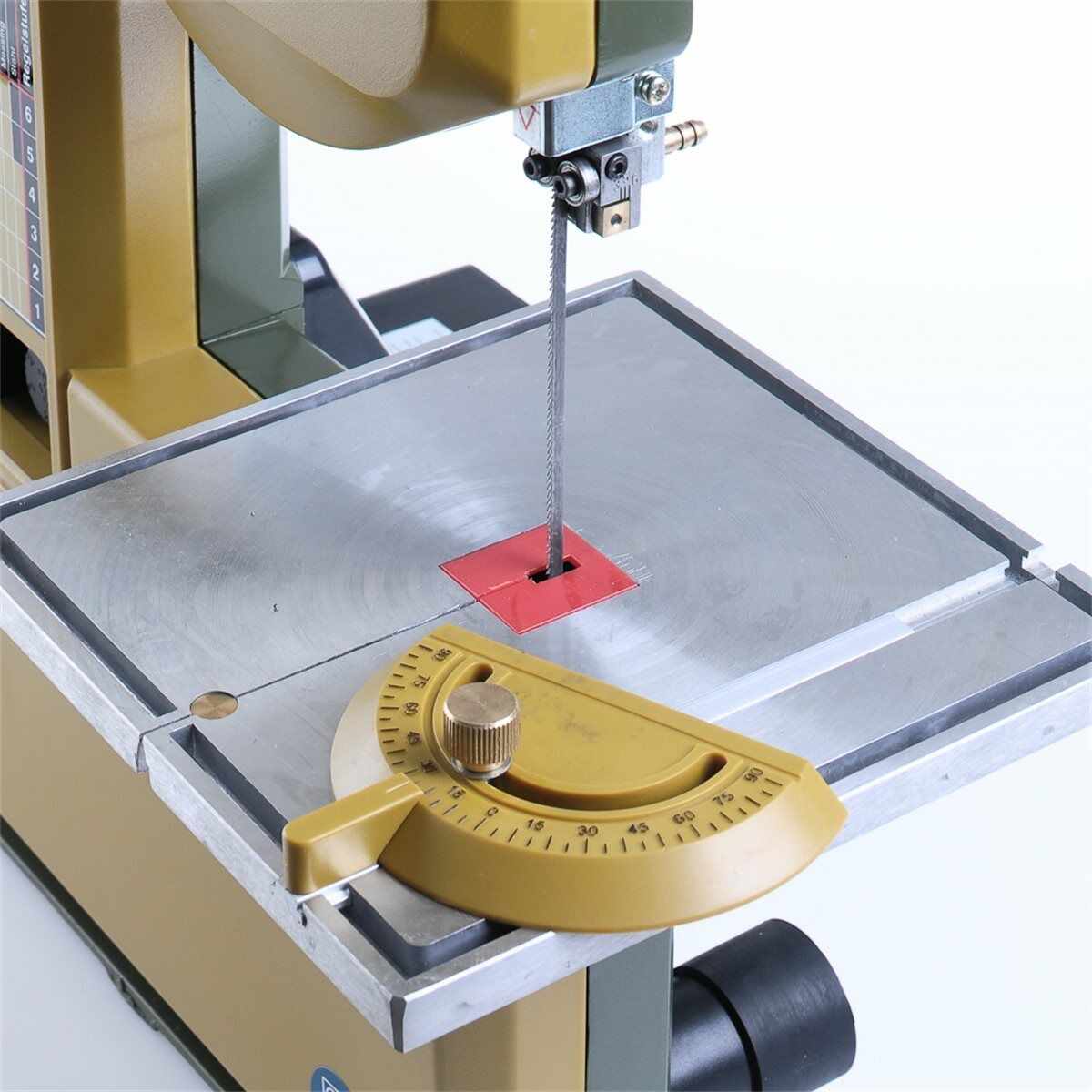

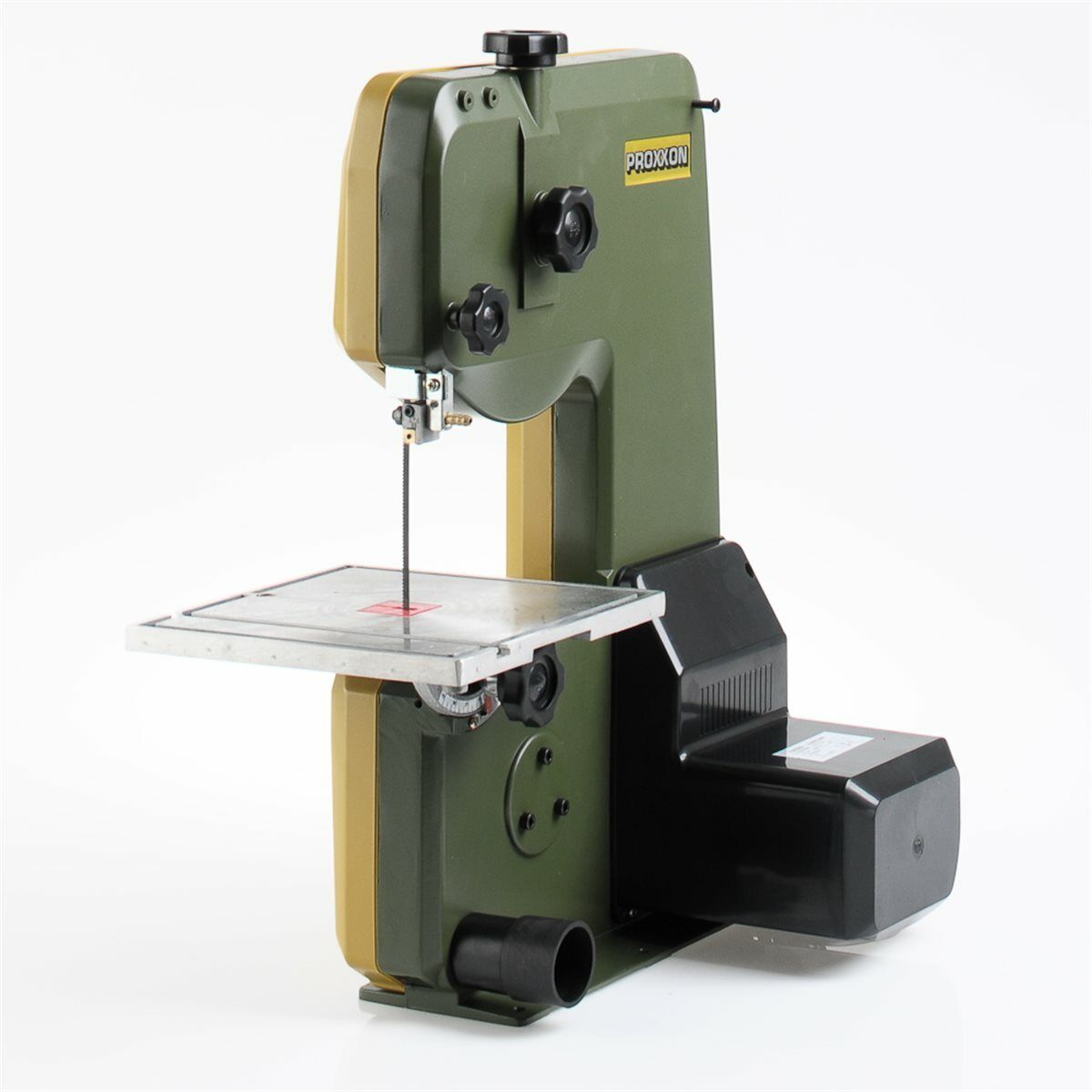

Solid, ribbed die-cast aluminum housing (no tubular or sheet metal construction) with a sturdy machined table with slot for miter gauge. The table tilts up to 45° for accurate miter sawing. The machine has a low noise high-quality motor with belt driver for quiet and prolonged operation. Electronically controlled speeds allow for exceptionally accurate cutting without the need for subsequent finishing. A chart indicates the recommended speed for practically all materials. The blade size of 13/64" x 1/64" (5.0 x 0.4mm) is ideal for fine work and permits cutting small radii. The machine comes equipped with one band saw blade in size 42" x 13/64" x 1/64" (1065 x 5.0 x 0.4mm), 14 TPI. Technical data: Speed 395 to 820 ft/min (with feedback control); Throat Depth 5 29/32" (150mm); Max. work piece Height 3 13/32" (85mm); Table Size 7 7/8" x 7 7/8" (200 x 200mm), adjustable from 0 - 45°; Volts 110 - 120V AC, 60Hz
