Cross Milling Machine Compound Working table

Mini Multifunctional Working Table Milling Machine Compoud Bench

It is suitable for Mini Table Drill and drill stand, it can also apply to other suitable machine.

PRODUCT DETAILS:

Work table size: 330*90mm

Adjustment for X direction: 200mm

Adjustment for Y direction: 50mm

The total height: 80mm

Distance between grooves: 34mm

Zero adjustment handwheel rotates a circle:

A ring =1.25mm; A scale =0.05mm

N.W.: 1.6KG

Package Include:

1 x MCB-6300

1. This mini compoud bench is suitable for mini bench drill and drill stand.

2.The working table is composed of several adjustable dovetail slotaluminum alloy composition, it can guarantee the minimum space and ensure the accuracy.

3. The working table comes with three T shaped groove, standard size is 15x8x6mm.

4.X axis travel : 200mm,Y axis travel : 50mm, Distance between grooves : 34mm.

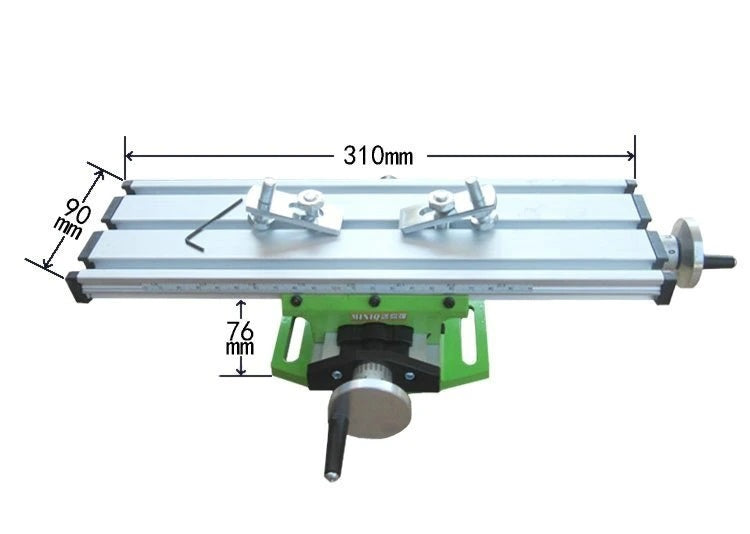

5.Working table size : 310mmx90mm, Height : 80mm (including two working clamp)
